MACHINE MODEL SIBM 933

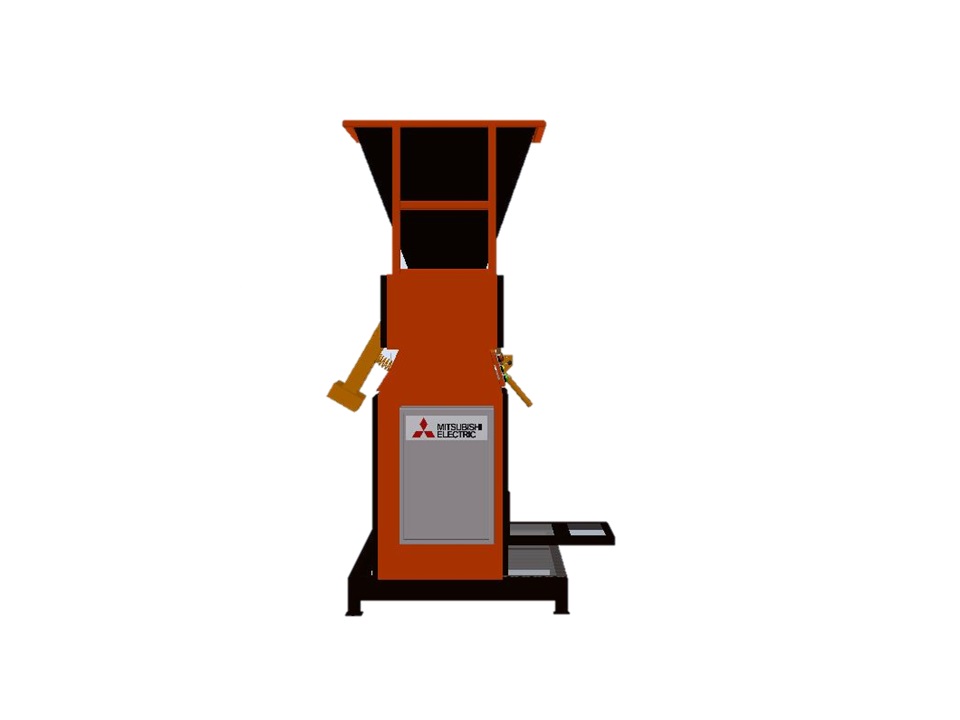

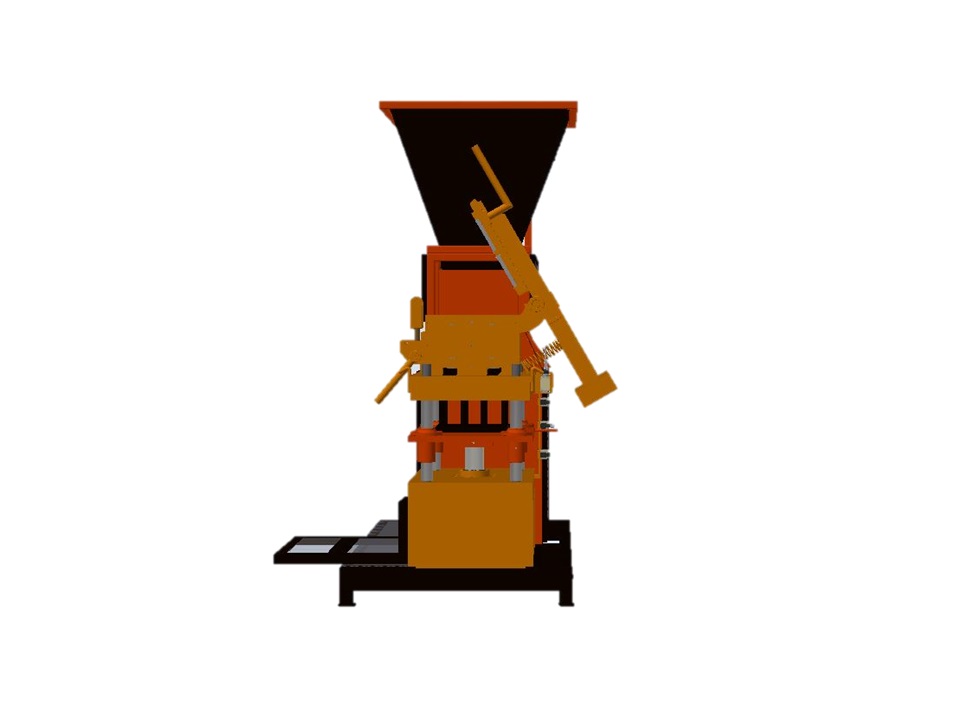

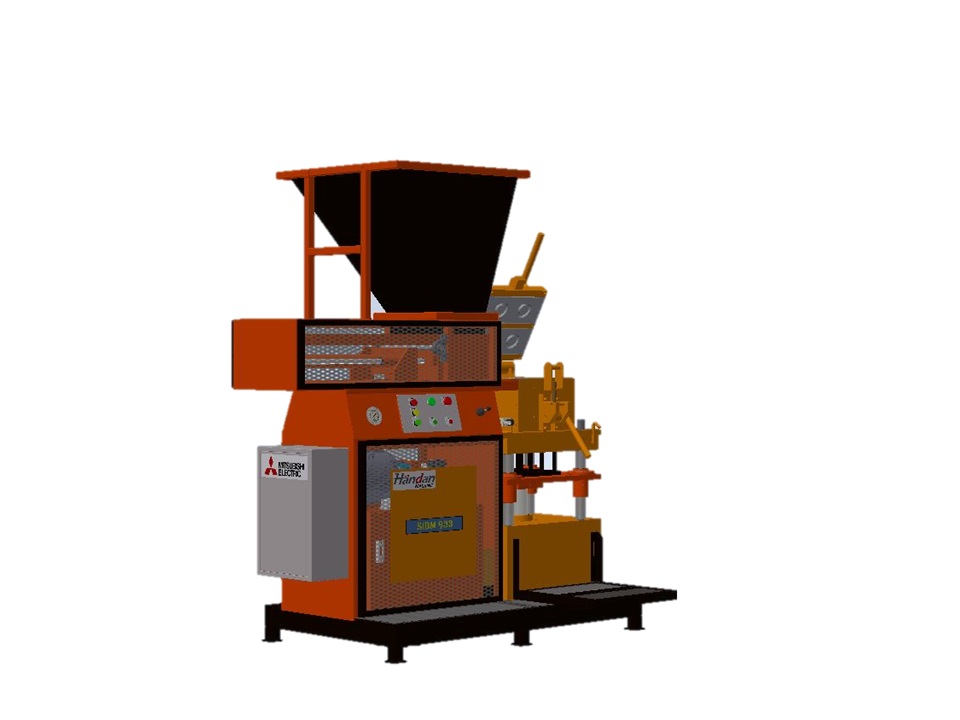

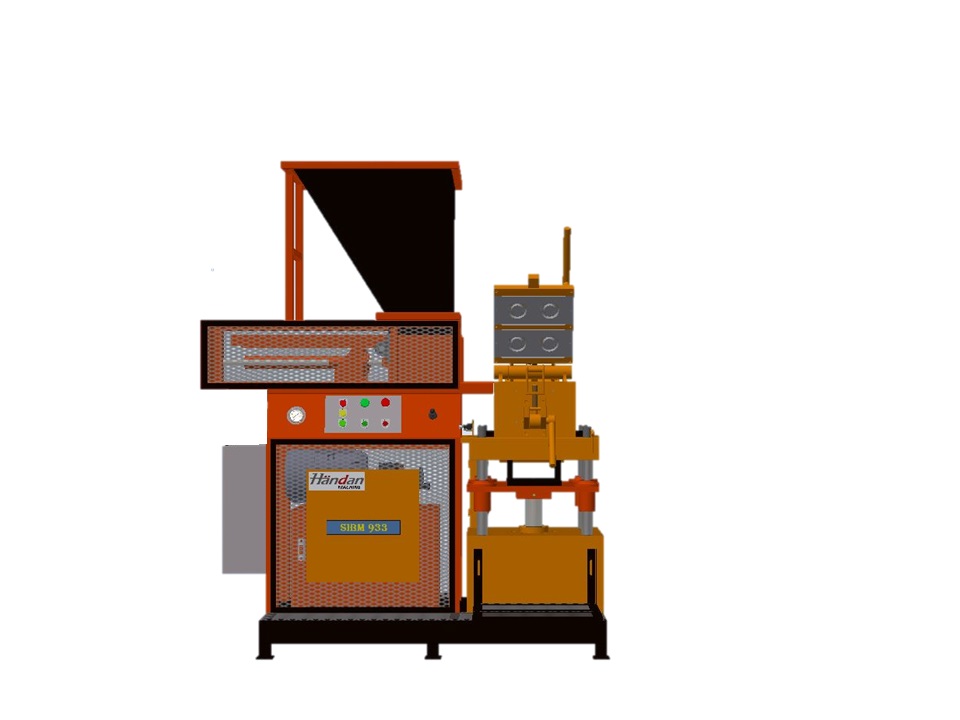

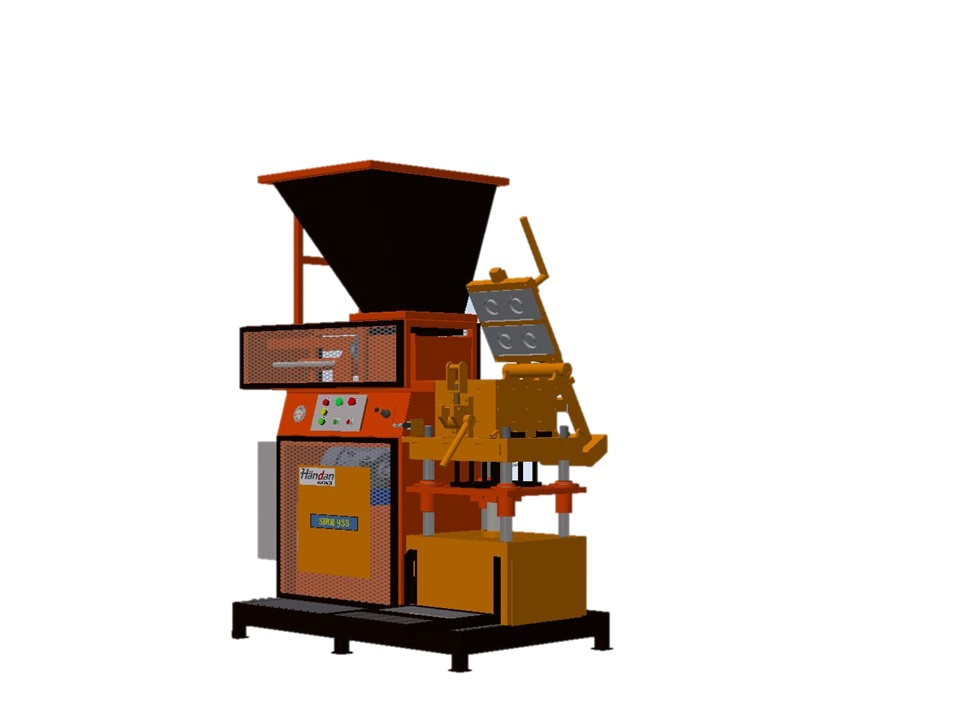

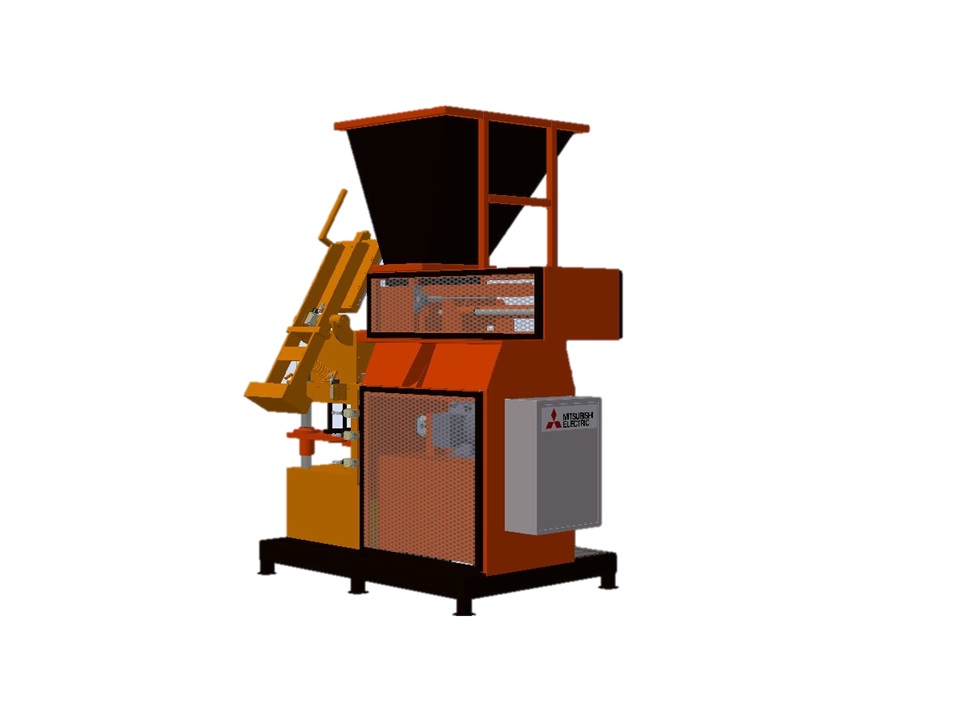

Machine Model SIBM 933 is Set of semi-automatic machine operation. This Machine used in construction to produce interlocking bricks, which are bricks that can be fitted together with soil, cement, sand and water use hydraulic pressure to compress into interlocking bricks for uniform shape and size.

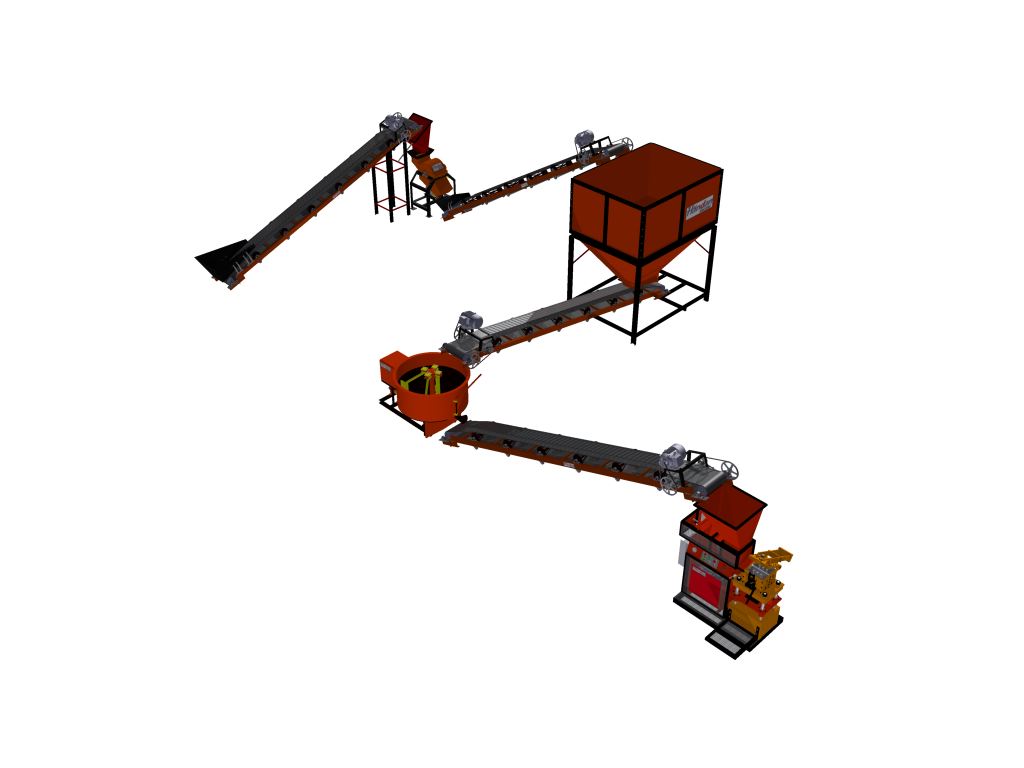

MACHINE LINE PRODUCTION

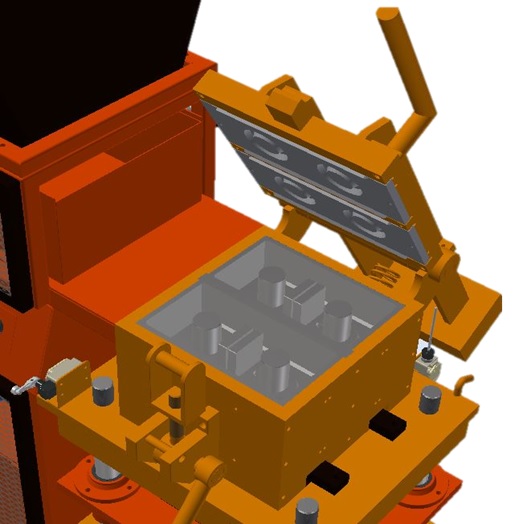

Machine Model SIBM 933 have special mold design. this mold can make two type of brick size. The size of brick can make by this machine model is  250mm x 125mm x 100mm and  300mm x 150mm x 100mm.

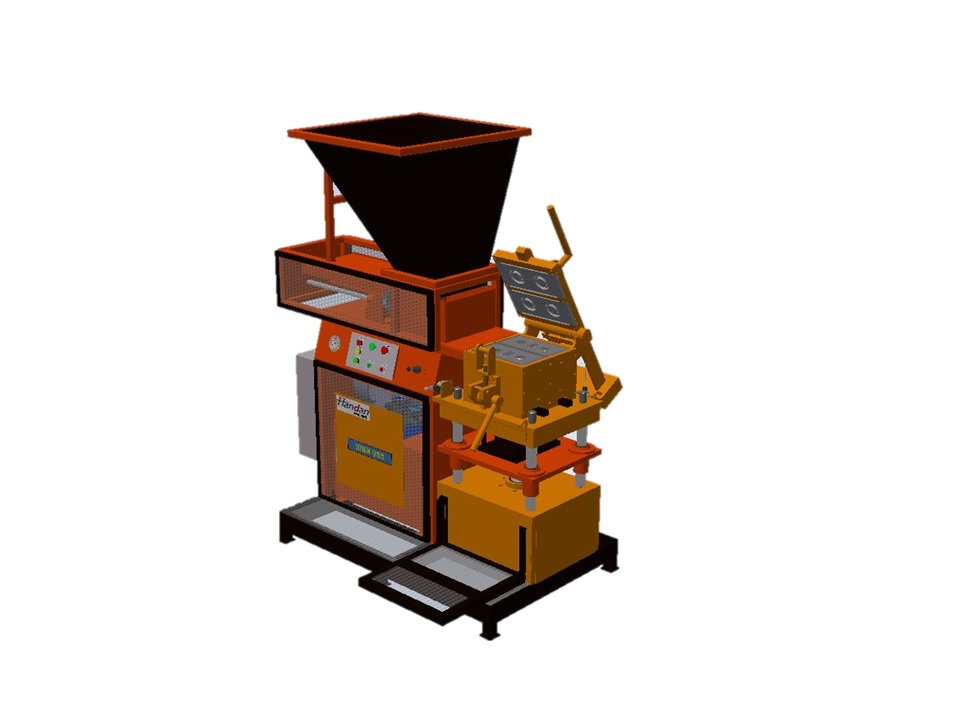

The control panel of an interlocking brick machine is a critical component that allows operators to manage and regulate the machine’s operations.

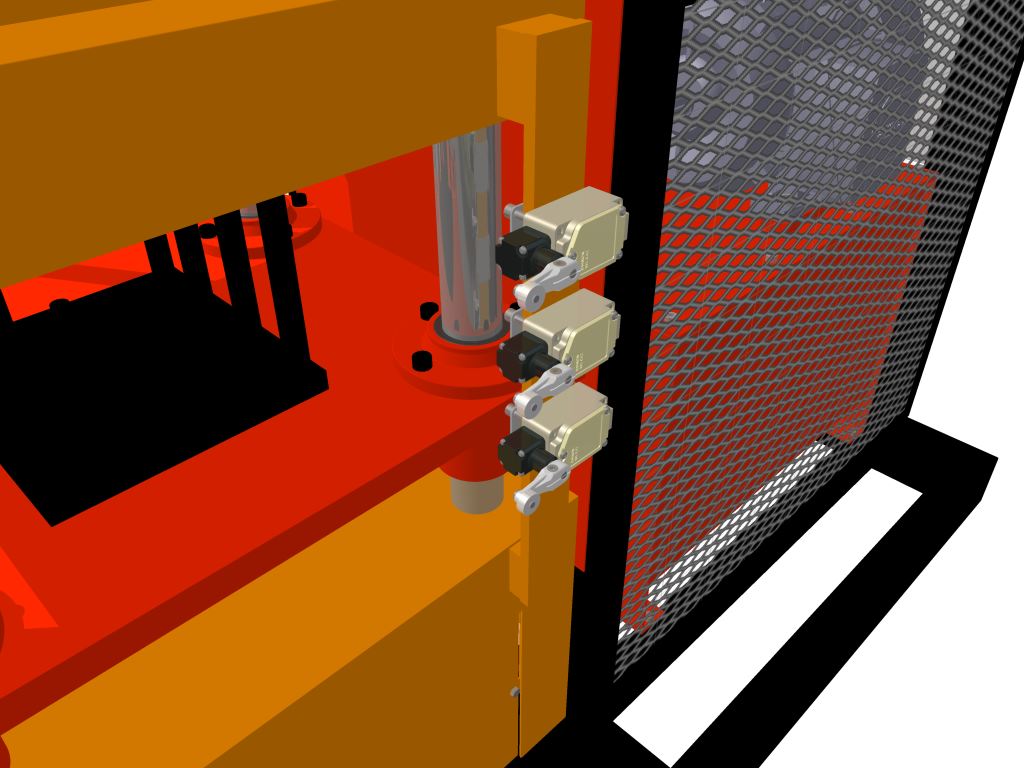

Limit Switch is an electromagnetically device operated by a physical force applied to it by an object. we use limit switch in our automatic system because its easy for maintenance.

PLC programming are applying in our machine it because is an important task of implementing control application. Programming made into PLC is more precise and be more consistent. Machine Model SIBM 911AB are set with semi manual operation.

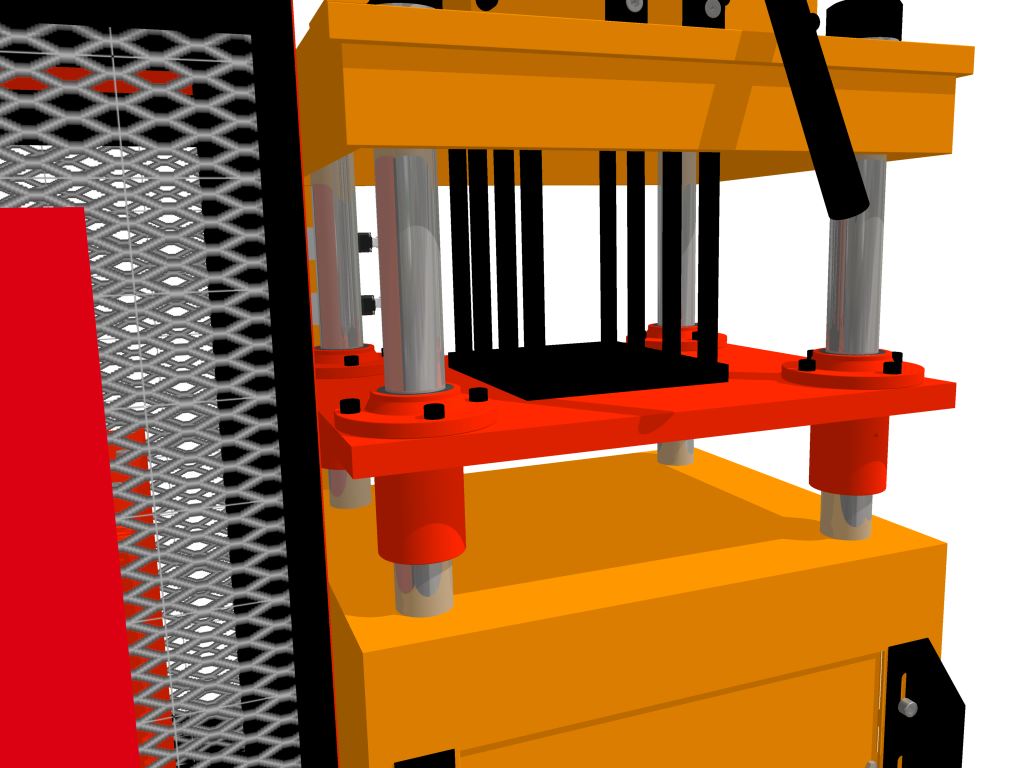

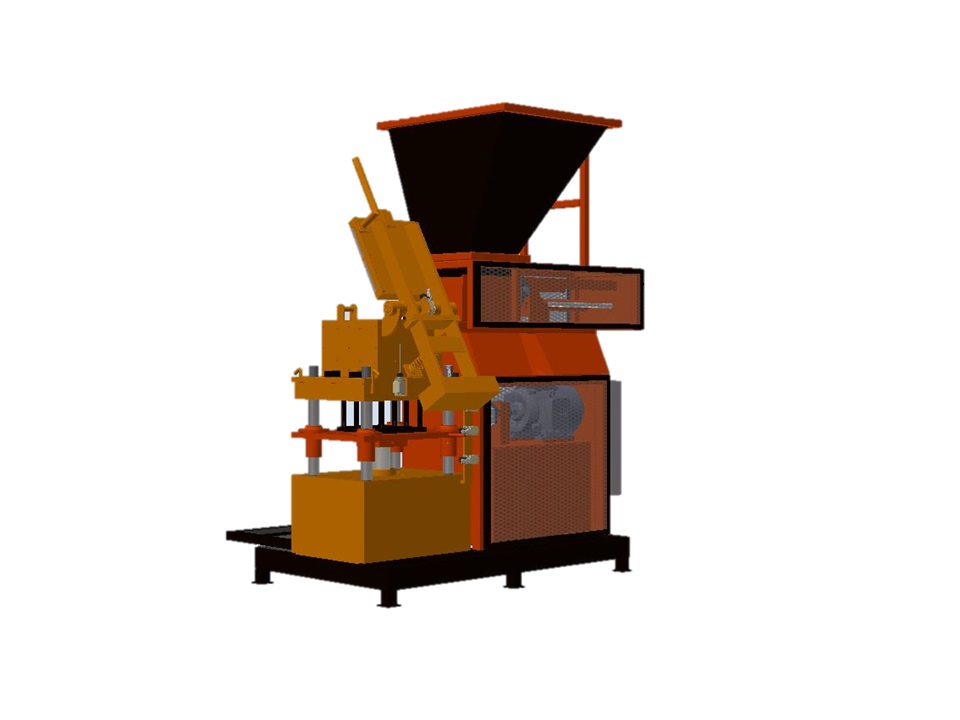

The hydraulic system in an interlocking brick machine is a key component responsible for providing the force required for various mechanical functions, such as mold compression, brick ejection, and movement of machine parts

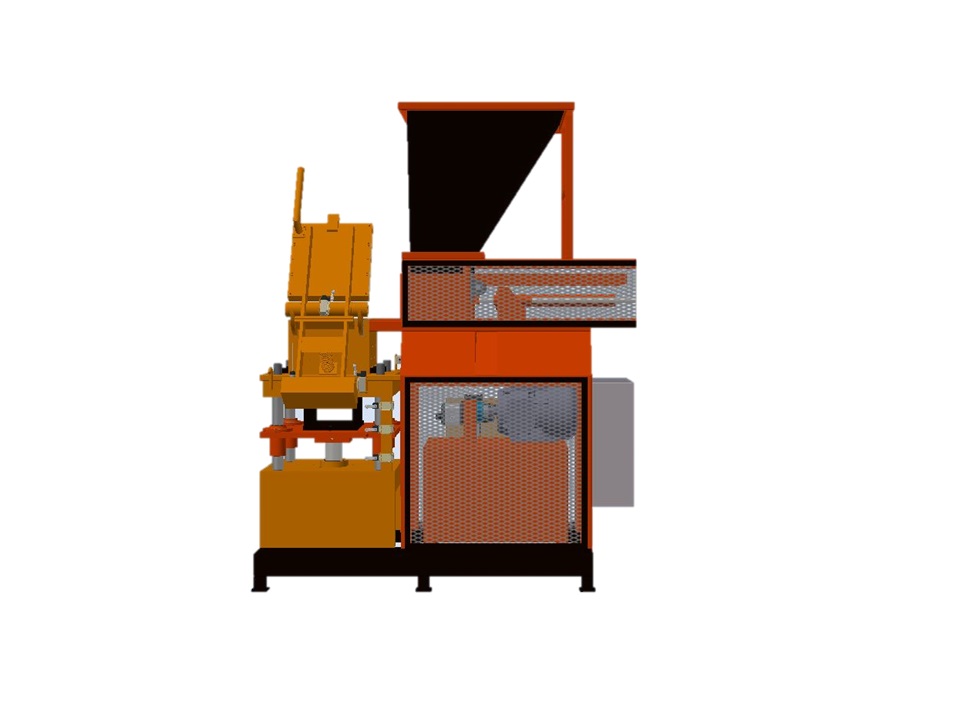

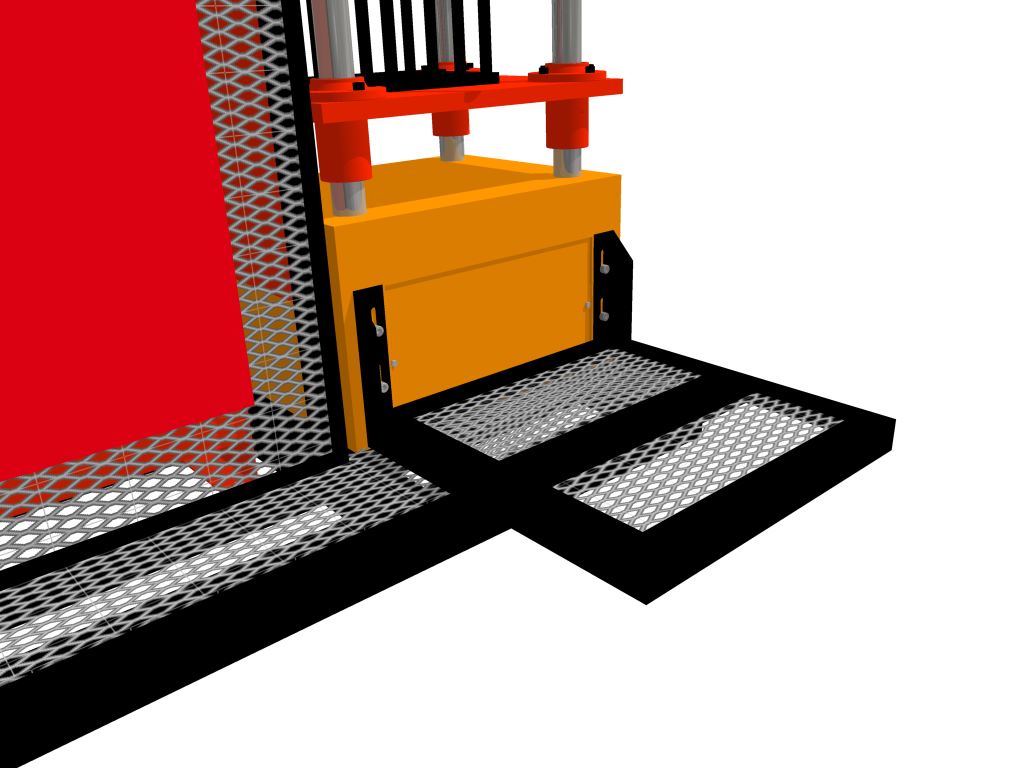

Operator Stand is the place for Operator operating their assigned machinery. They ensure their machine runs smoothly, works at capacity without issue and is appropriately maintained



SPECIFICATION



ITEM

DESCRIPTION

DETAIL

BRICK





PRODUCTION CAPACITY

BRICK / CYCLE
CYCLE / MINUTE
BRICK / MINUTE

2 PIECE
3 CYCLE / MINUTE
6 PIECE (270 PIECE TO 360 PIECE / HOUR)

BRICK TYPE

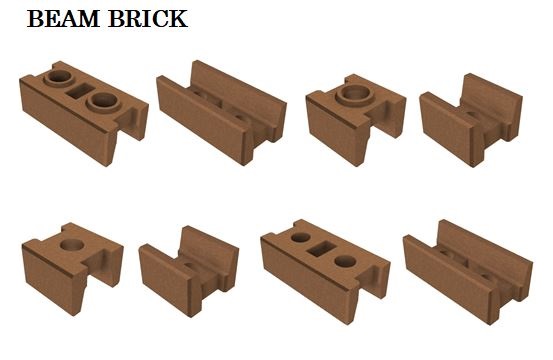

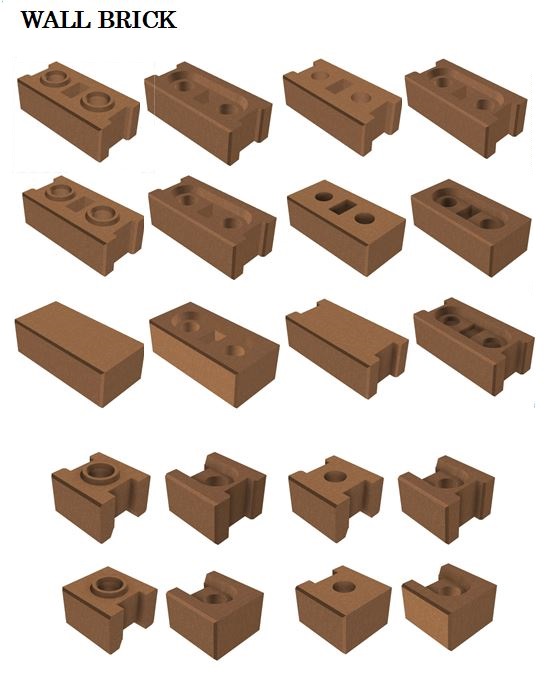

WALL BRICK, HALF WALL BRICK, BEAM BRICK,HALF BEAM BRICK

BRICK SIZE

PER PIECE (MM)

250 X 125 X 100 //  300 X 150 X 100
(CAN CUSTOM MADE UPON REQUEST)

MOTOR

MITSUBISHI JAPAN

10 Hp 7.5Kw

380V – 415V

3 PHASE 50Hz

1440 Rpm

HIDRAULIC PUMP



ITALY & GEMANY MANUFACTURED



120 LITER

SINGLE PUMP 28 LITER

PRESSURE DURABILITY 20 TO 30 TON

GERMANY HYDRAULIC RUBBER PIPE

ELECTRICAL BOX

MITSUBISHI JAPAN

OMRON JAPAN

W.I.R

MAGNETIC SWITCH S-T21 200V-240V

CIRCUIT BREAKER NF30-CS 30A

MULTIFINCATIONAL TIMER H3CR-A

RELAY MY2N

DIGITAL PHASE PROTECTOR WIP W-OP4

LIMIT SWITCH

OMRON JAPAN

2A 250V AC

2A 48V DC

DIRECTIONAL

YUKEN JAPAN

FOUR PORT / THREE POSITION DIRECTIONAL

CONTROL VALVE



CONTROL VALVE (4/3 DCV)

ETC



WORKER



3 TO 4 PERSON

 WEIGHT



1200KG

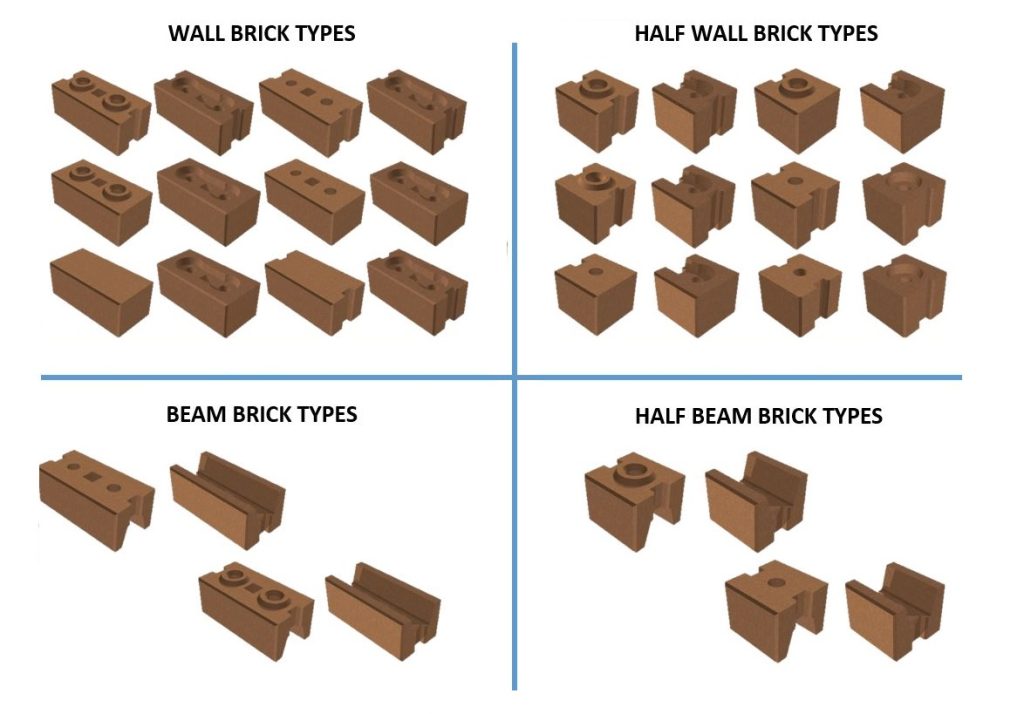

BRICK TYPE

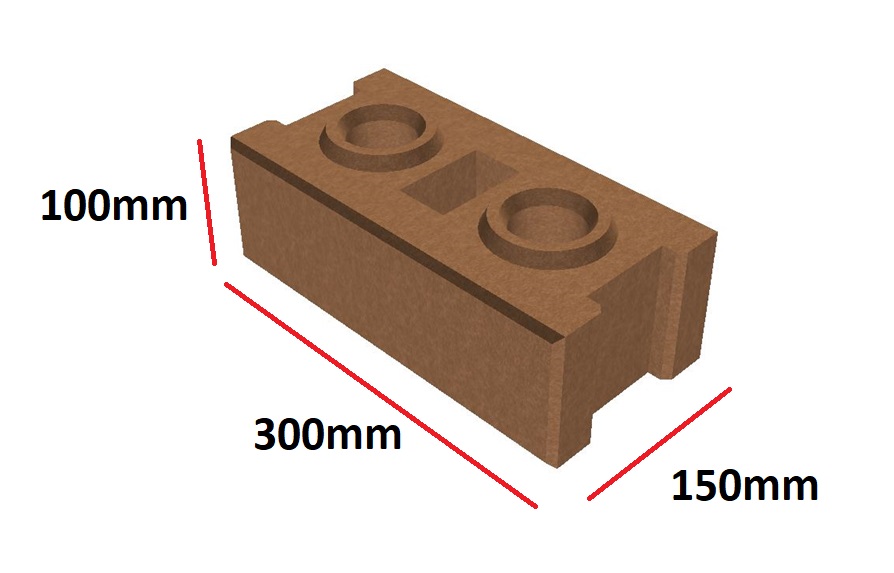

BRICK SIZE 300MM X 150MM X 100MM

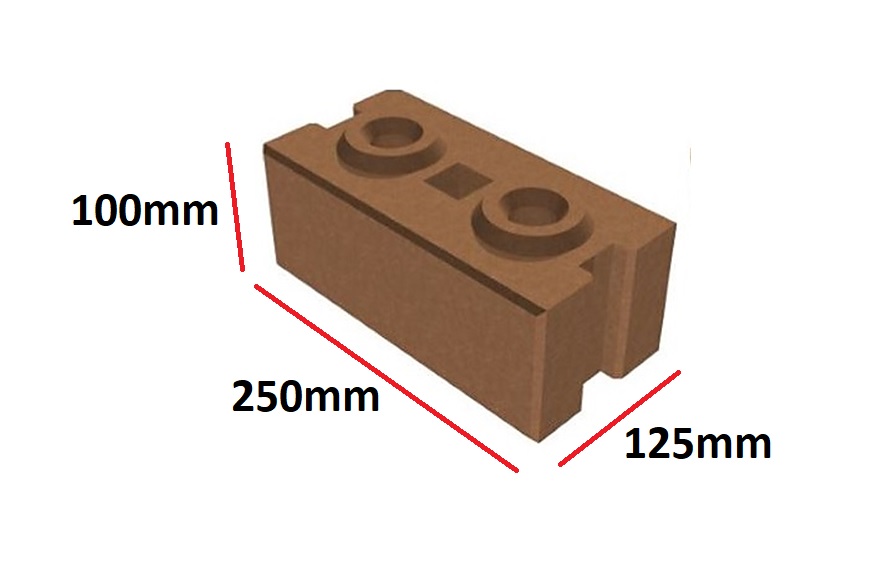

BRICK SIZE 250MM X 125MM X 100MM

BRICK SIZE 250MM X 125MM X 100MM

BRICK SIZE 300MM X 150MM X 100MM
