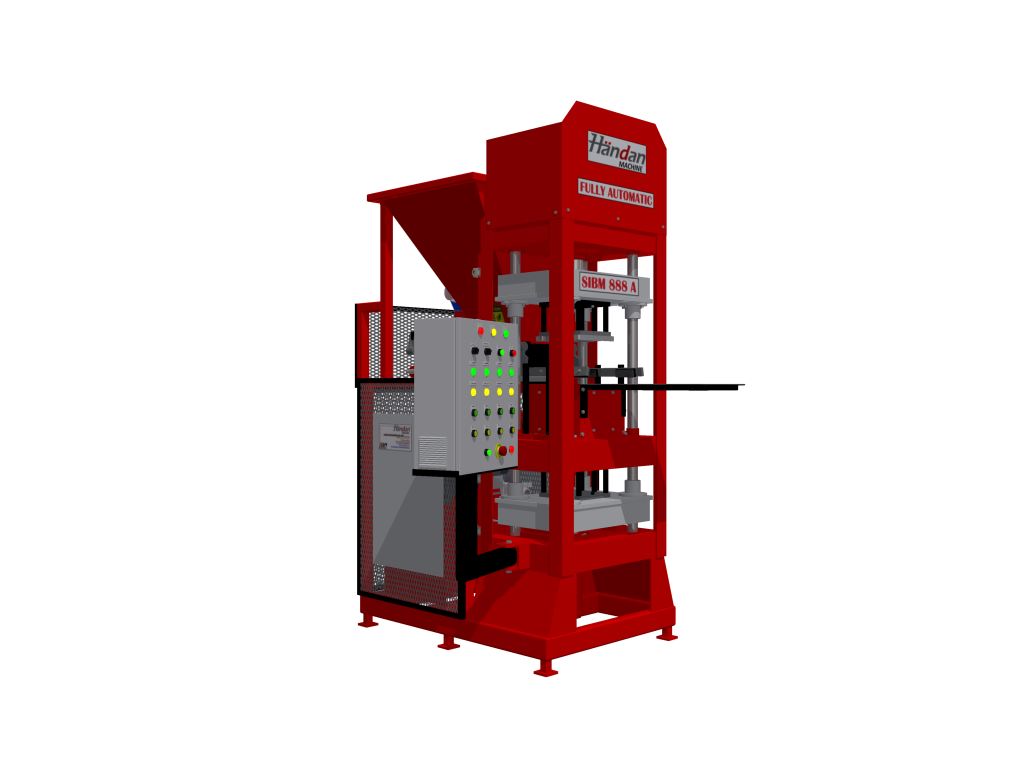

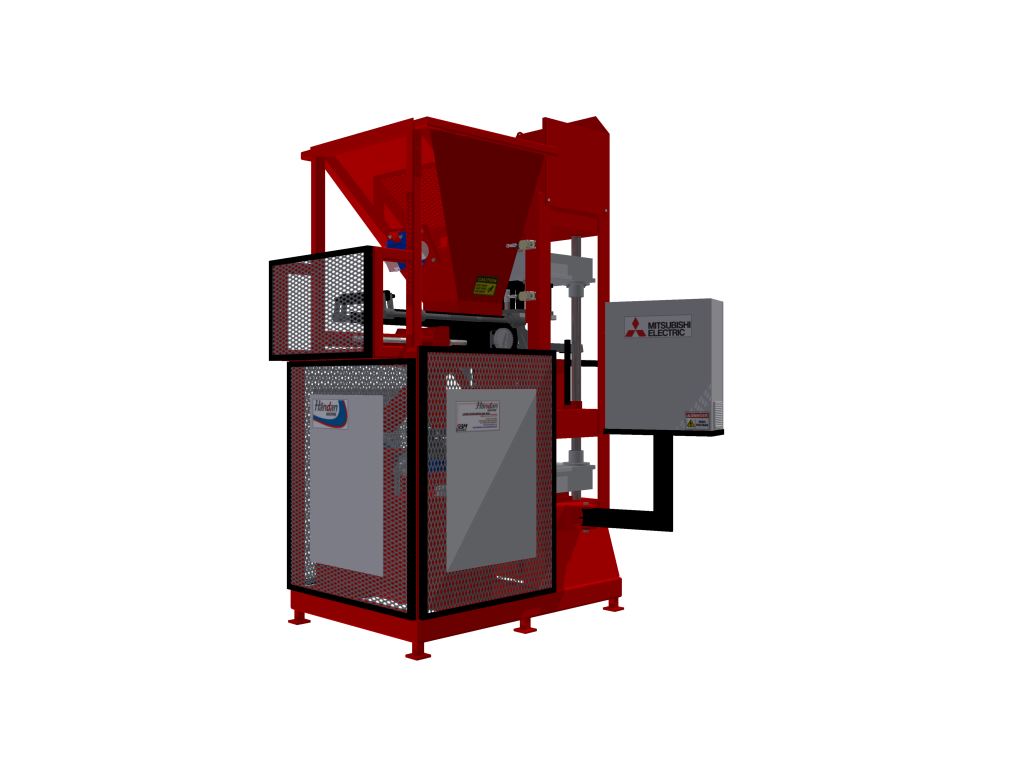

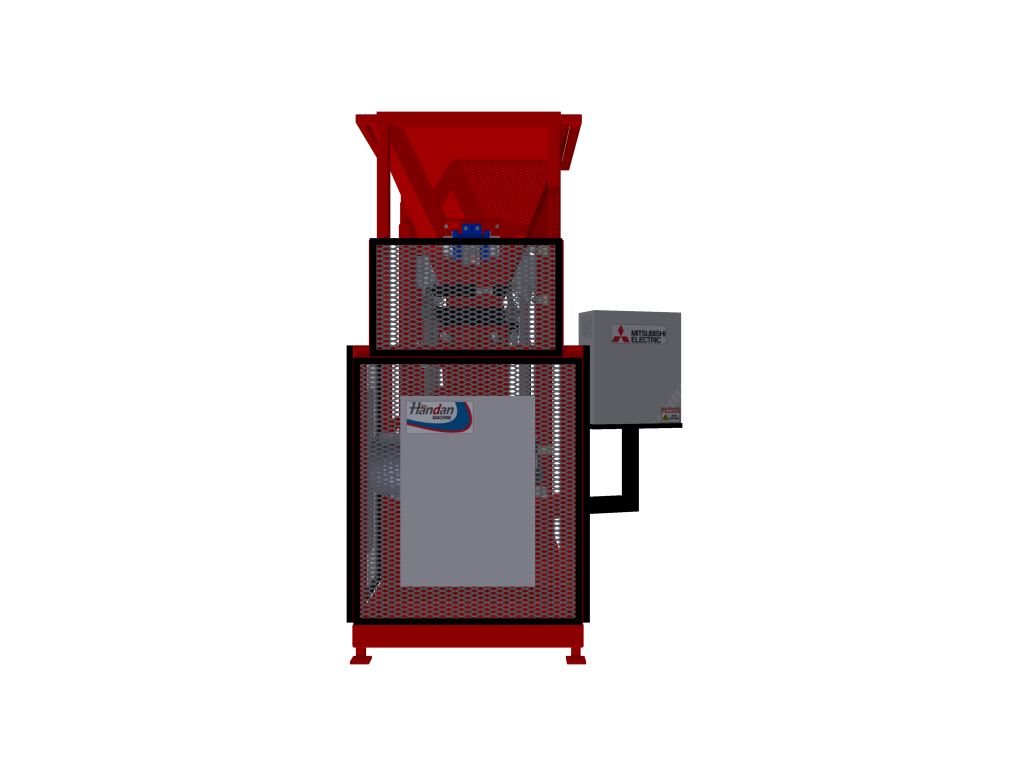

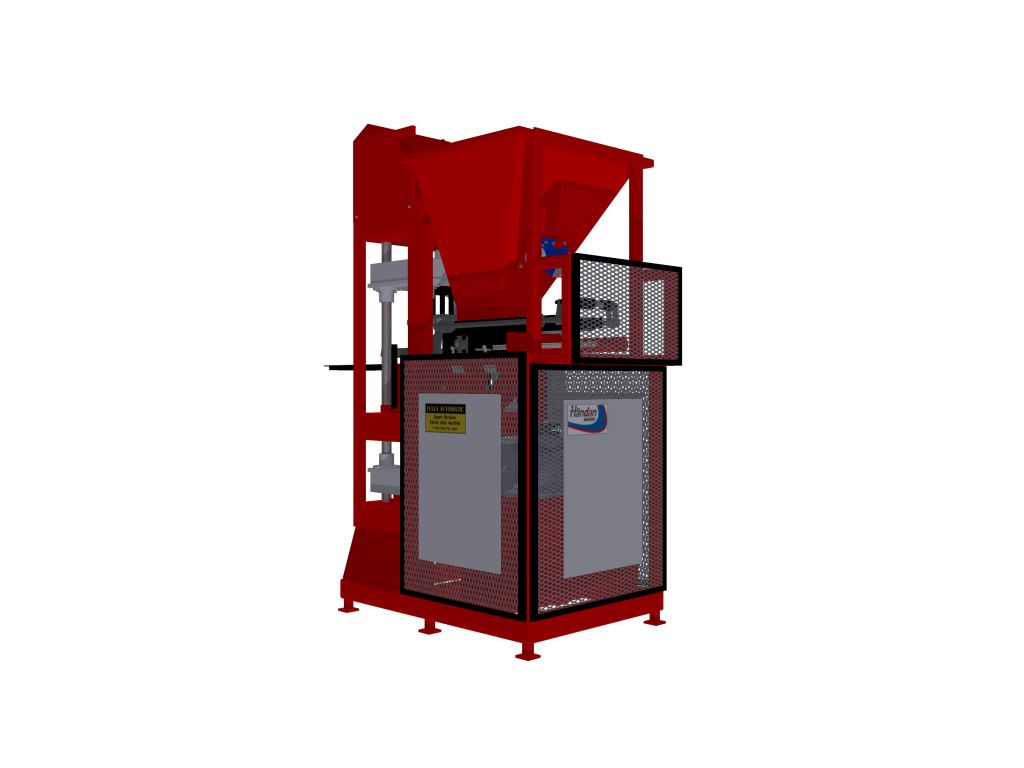

MACHINE MODEL SIBM 888A

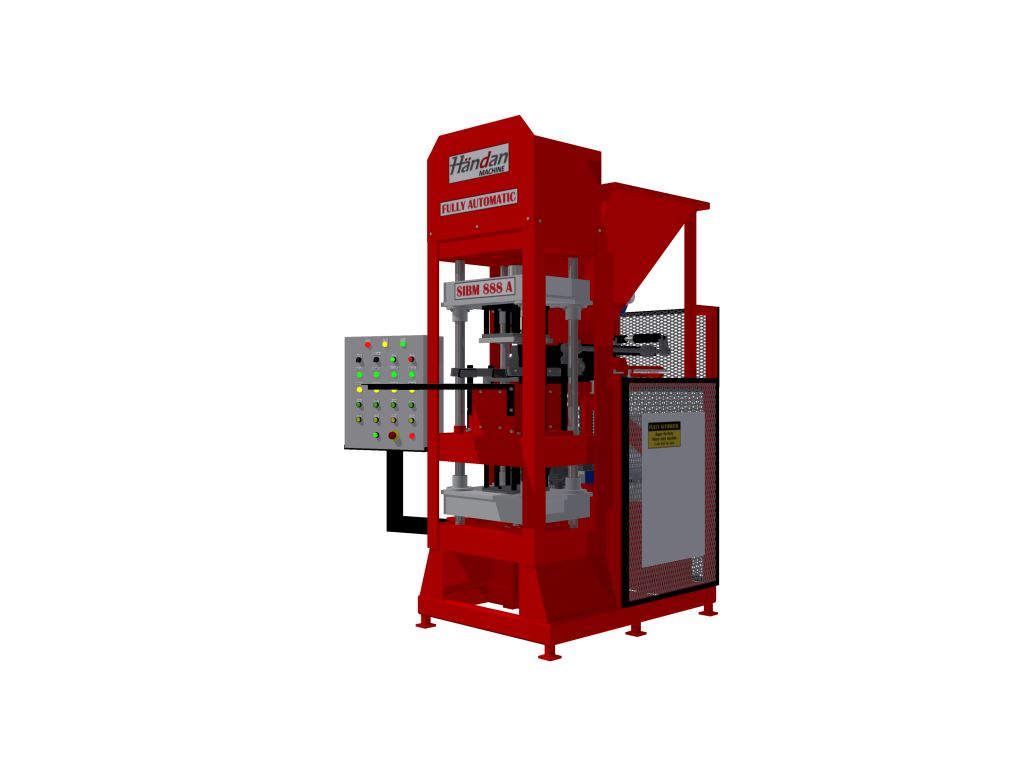

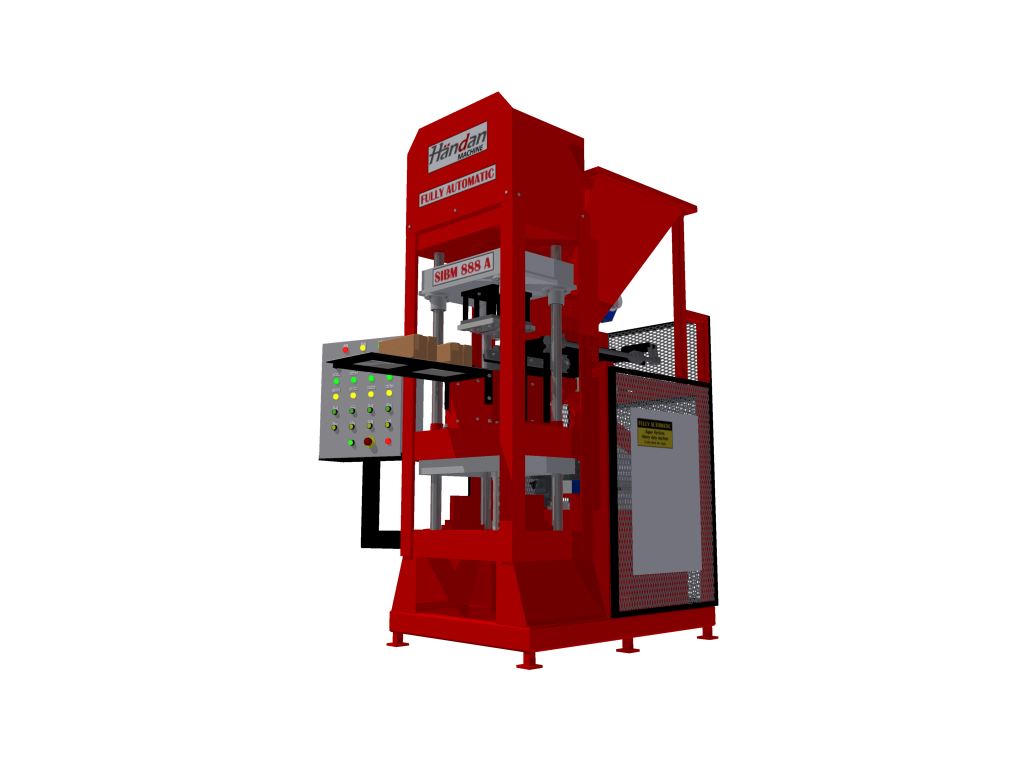

Set of fully automatic the set equipment for production of compressed soil in interlocking brick and high compression grinding followed by sifting will balance the size of the raw
materials needed for mixing..

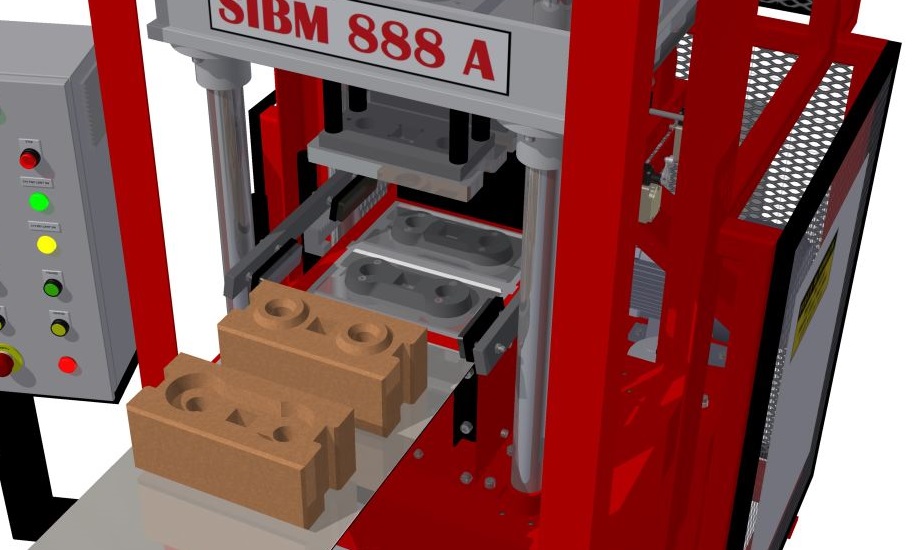

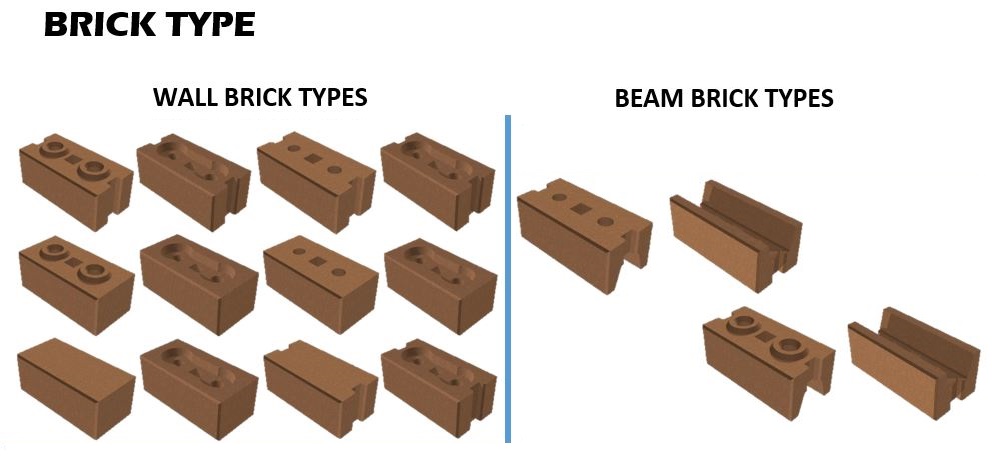

Machine Model SIBM 888A  Can Make Two Type Of Brick. It’s Wall Brick and Beam Brick. This Type Brick Call Wall Brick. Wall brick are design to make wall or partition. This Strong Brick Made In High Compress Pressure It Around 30-40 Ton Pressure. This Brick Size Is 250mm X 125mm X 100mm.

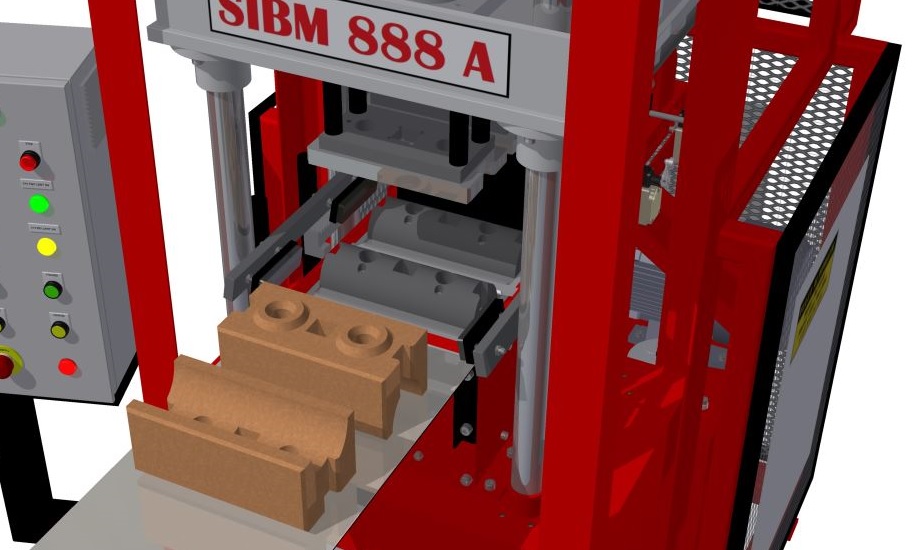

BEAM BRICK are design to make main structure or building like beam. Beam Brick are design to make high of strength of beam. This brick will be fill 40% of simen when become to structure.  This Strong Brick Made In High Compress Pressure It Around 30-40 Ton Pressure. This Brick Size Is 250mm X 125mm X 100mm.

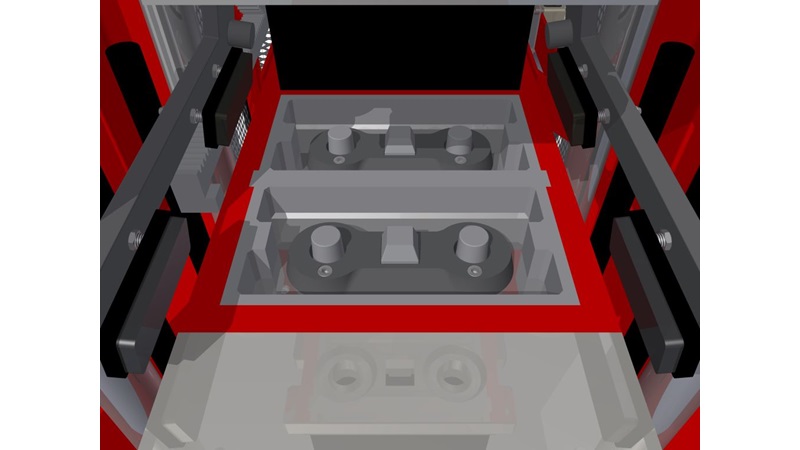

Brick Processing Area. This area is where mold is located. Mold is a cavity in which raw material substance shaped into a desired of brick.

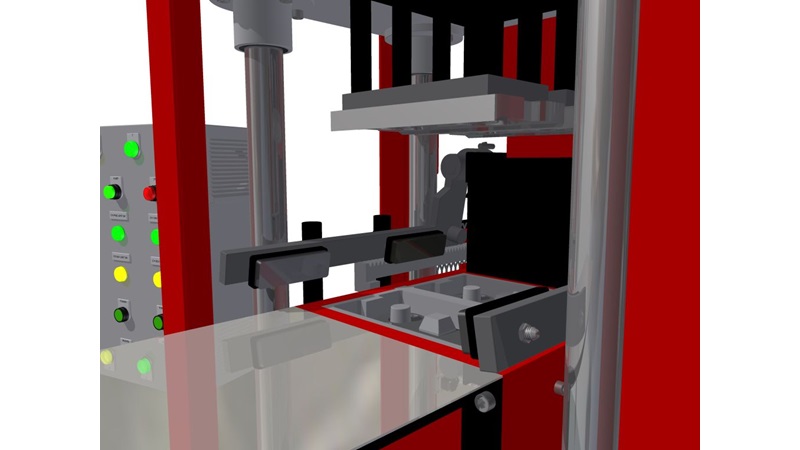

Bottom Mold is where the material is fully inserted into the mold cavity. The shape and size of the bricks are formed according to the mold. The mold is made of hard and durable steel which is S50C where the steel has been through the hardening process.

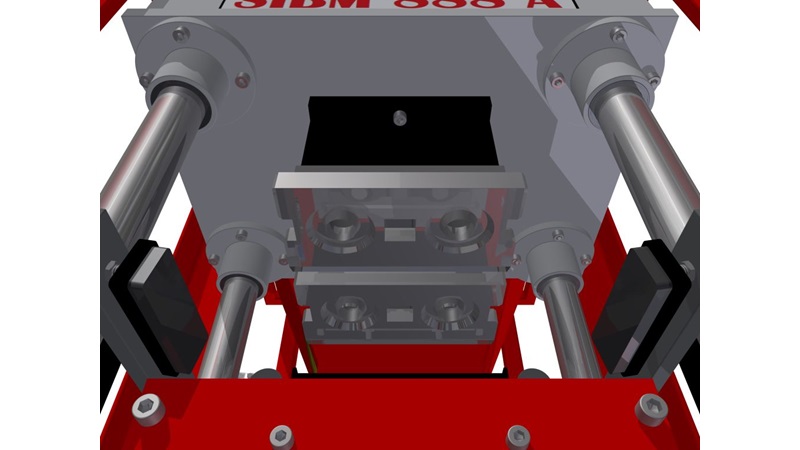

Upper Mold will form a brick on the top of the brick. The upper mold is responsible for compressing the raw material at high pressure to produce strong bricks. The steel used is S50C so that the mold is more durable and there is less erosion on the mold wall.

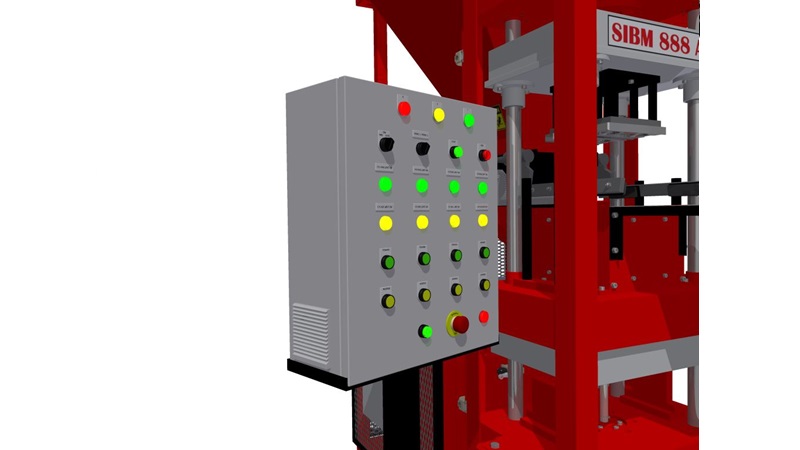

Control Panel is used to accommodate instruments for the purpose of measurement, monitoring, protection, detection, control and manage the processes. We apply PLC programming in our machine because it is an important task of implementing control application.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

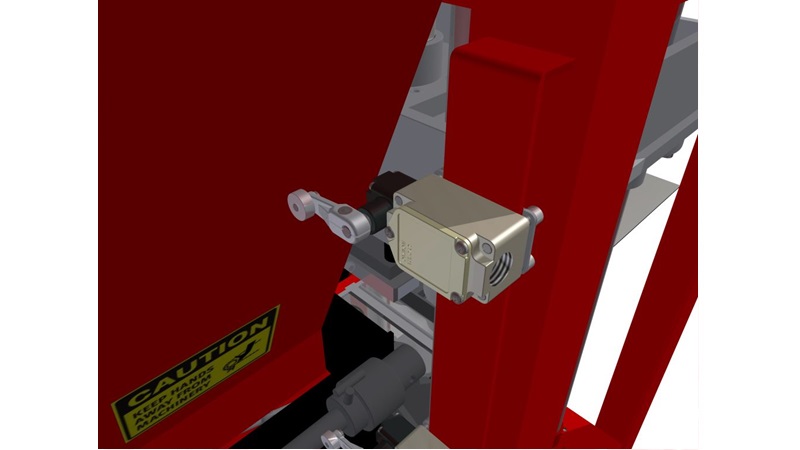

Limit switch is an electromagnetically device operated by a physical force applied to it by an object. we use limit switch in our automatic system because its easy for maintenance and

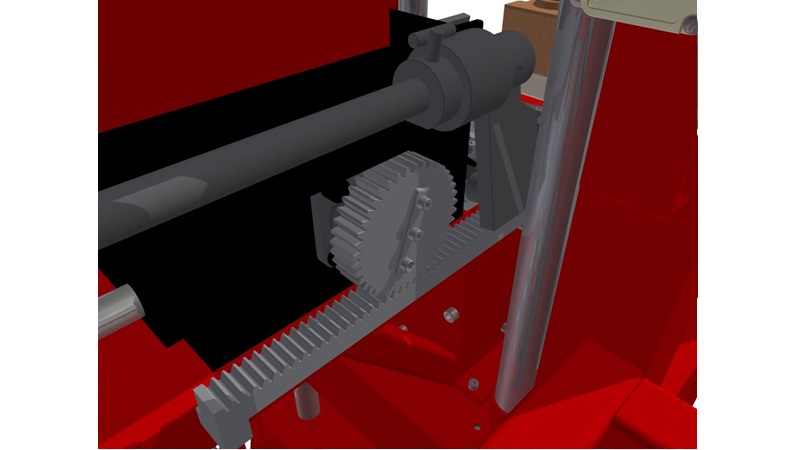

Shifter Box as component to push raw material into the mold. We use gear technology to move the shifter box. This technology are used to avoid the frequency of damage to the mechanical system and it’s easy to maintain.

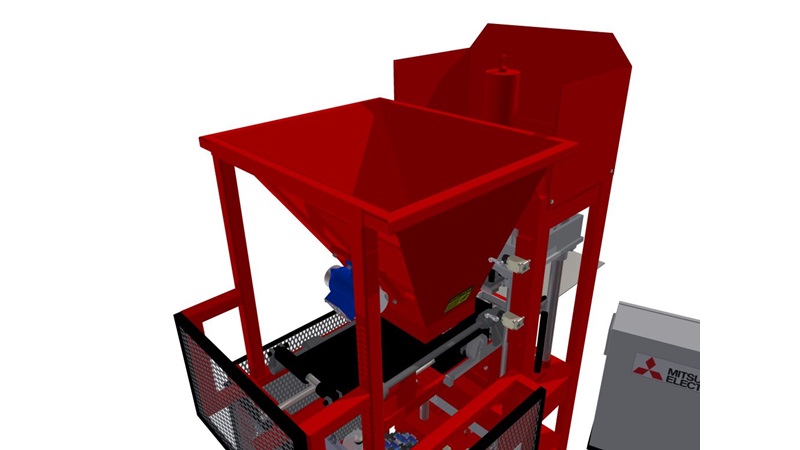

Hopper are container for a loose raw material such as soil, sand, simen and water that tapers downward and is able to discharge its contents at the bottom.

SPECIFICATION

SPECIFICATION



ITEM

DESCRIPTION

DETAIL

BRICK





PRODUCTION CAPACITY

BRICK / CYCLE
CYCLE / MINUTE
BRICK / MINUTE

2 PIECE
4 CYCLE / MINUTE
8 PIECE (420 PIECE TO 480 PIECE / HOUR)

BRICK TYPE



WALL BRICK, BEAM BRICK

BRICK SIZE

PER PIECE (MM)

250 X 125 X 100
(CAN CUSTOM MADE UPON REQUEST)

MOTOR

MITSUBISHI JAPAN

10 Hp 7.5Kw
380V – 415V
3 PHASE 50Hz
1440 Rpm

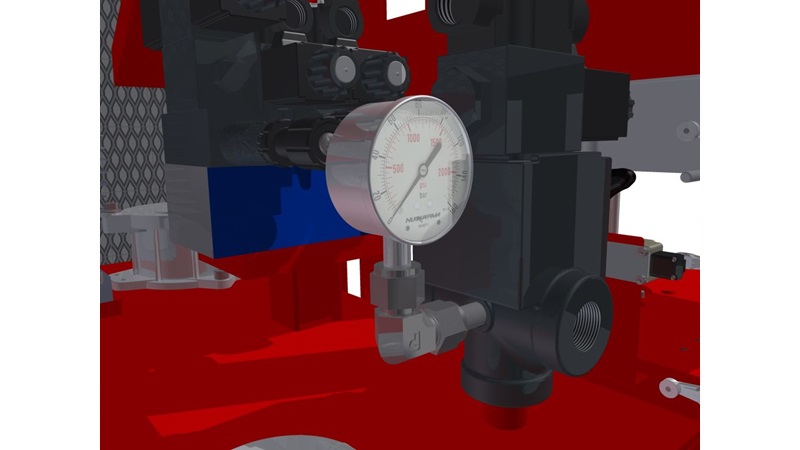

HIDRAULIC PUMP


RUBBER HOSE

ITALY MANUFACTURED


KOREA MANUFACTURED

120 LITER
SINGLE PUMP 21 LITER
PRESSURE DURABILITY 30 TO 40 TON
HYDRAULIC RUBBER HOSE SEA 100RA2T

ELECTRICAL BOX

MITSUBISHI JAPAN

OMRON JAPAN

W.I.R

MITSUBISHI PLC FX3-40
MAGNETIC SWITCH S-T21 200V-240V
CIRCUIT BREAKER NF30-CS 30A
MULTIFINCATIONAL TIMER H3CR-A
RELEY G2R-1-SN(S), RELAY MY2N
DIGITAL PHASE PROTECTOR WIP W-OP4

LIMIT SWITCH

OMRON JAPAN

2A 250V AC
2A 48V DC

DIRECTIONAL

YUKEN JAPAN

5 SET OF FOUR PORT / THREE POSITION DIRECTIONAL
RELIEF FILTER MPF1811AG1P10NBP01

CONTROL VALVE



CONTROL VALVE (4/3 DCV)

ETC



WORKER



2 TO 3 PERSON

WEIGHT



1200KG
